Cold Applied In-Line Closures, Dome Ended Fiber Optic Joint Closure manufacturer from China Ningbo Cheerwe Telecom Electronics INC

Cold Applied In-Line Closures, Dome Ended Fiber Optic Joint Closure

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Brand Name: Cheerwe

In-line thermplastic closure
Four cable ports, two on each side
Cable sealing based on gel technology (2 knobs for gel compression)
Easy re-entr

Cold Applied In-Line Closures, Dome Ended Fiber Optic Joint Closure,

Fiber Optic Inline Butt Splice Closure

Item No.:CWFOC1003

They are typically used for customer drops, tap-offs (taut sheath) and in-line splice applications.

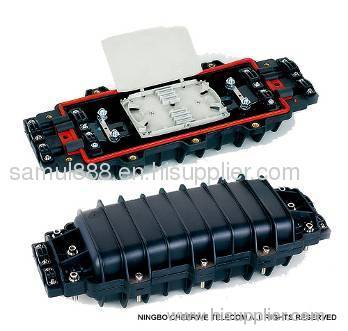

The wrap-around thermoplastic body consists of two hingeable shells that are sealed with an O-ring system and that can easily be closed using latches. One mass splicing tray and cable attachment units are provided at the inside.

Features

In-line thermplastic closure
Four cable ports, two on each side
Cable sealing based on gel technology (2 knobs for gel compression)
Easy re-entry and re-closure
Compatible with most cable constructions (loose tube, central core, slotted core
4 general cable ports, could be suitable for connect different branch cable, including uncut cable.
It is used high quality imported material to make sure the closure service life.
It is used raw adhesive tape for sealing.
It applies to direct buried, aerial, pipe-lined applications, and solves the storage problem

Dimension for the Closure(L×W×H)		470mm×180mm×125mm
Ports For Cable Entrance		3 Ports each side
Suitable Diameter For the Cable		Φ20 mm
Max capacity	Bundle Cable	12-96
	Ribbon Cable	144
Quantity Of Splice Tray Installed		1-4
