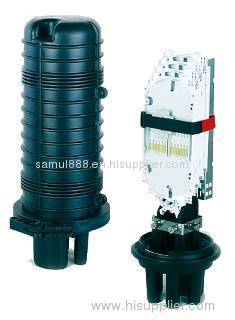

Fiber Optic Splice Closure, Fiber optic Junction Box CWFOC1001
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Means of Transport:
Ocean
FOSC CW1988 has good Specifications in Sealing.
1.Features
2.Single-ended thermoplastic closure
3Base and dome sealed with clamp and O-ring system
Item No.:CWFOC1001
Four individual, self-sizing grommeted cable ports
( expandable to six cable entrances)
• Taut Sheath splice module accommodates up to twelve fusion or mechanical splices and supports storage of up to twelve optical connector adapters
• Patented tongue-in-groove cover seal system
• Cable retention clamps provide pullout rating required
• Engineered thermoplastic to meet aerial and UV resistance requirements
• Protective channel allowing taut fibers or bundles to pass through the closure
• Rural Utilities Service ( RUS) Listed
Dimension for the Closure(H×D) | 460mm×205mm |
Ports For Cable Entrance | 5 |
Suitable Diameter For the Cable | Φ38mm |
Max capacity | Bundle Cable | 24-96 |
Ribbon Cable | 288 |
Quantity Of Splice Tray Installed | 1-4 |
